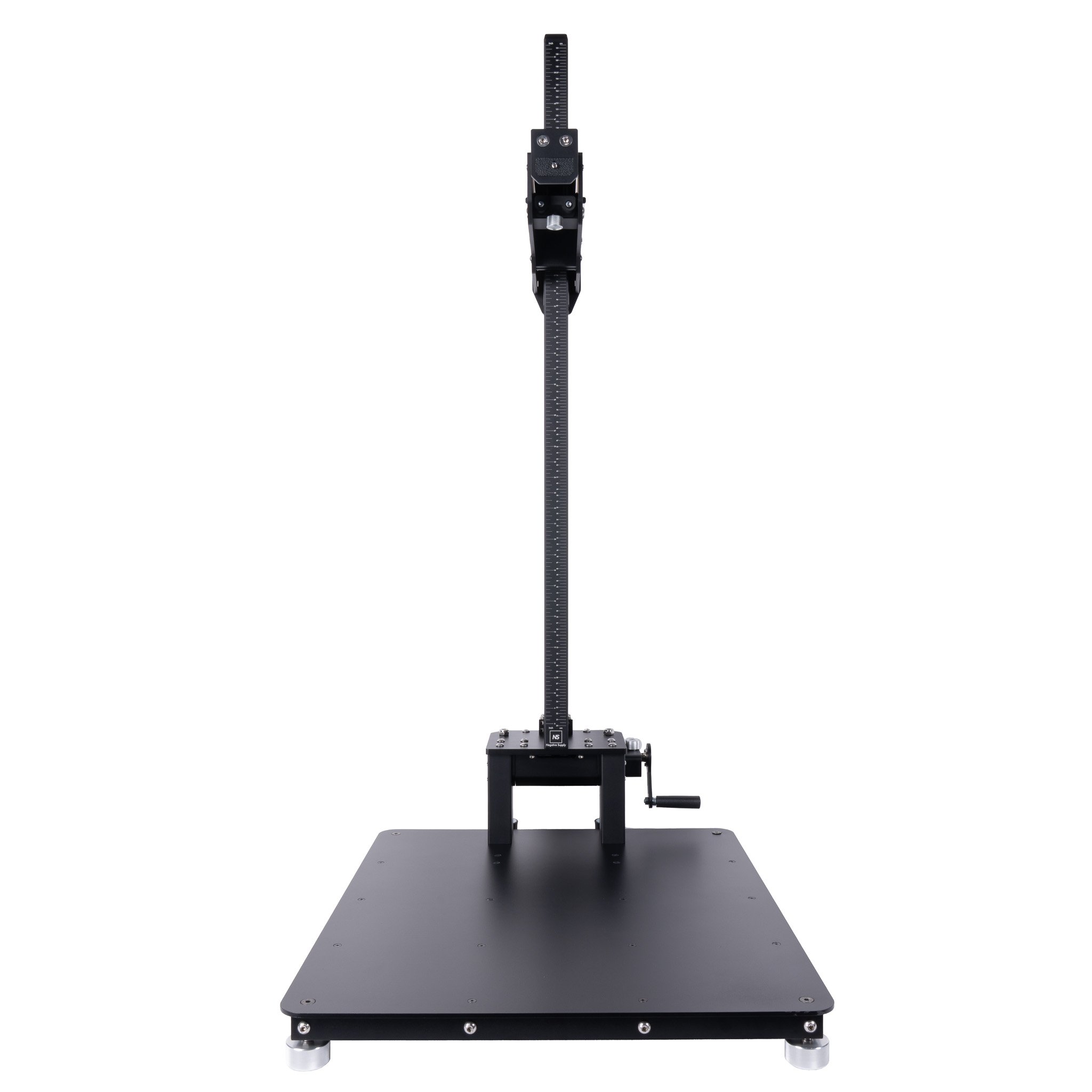

Features at a glance:

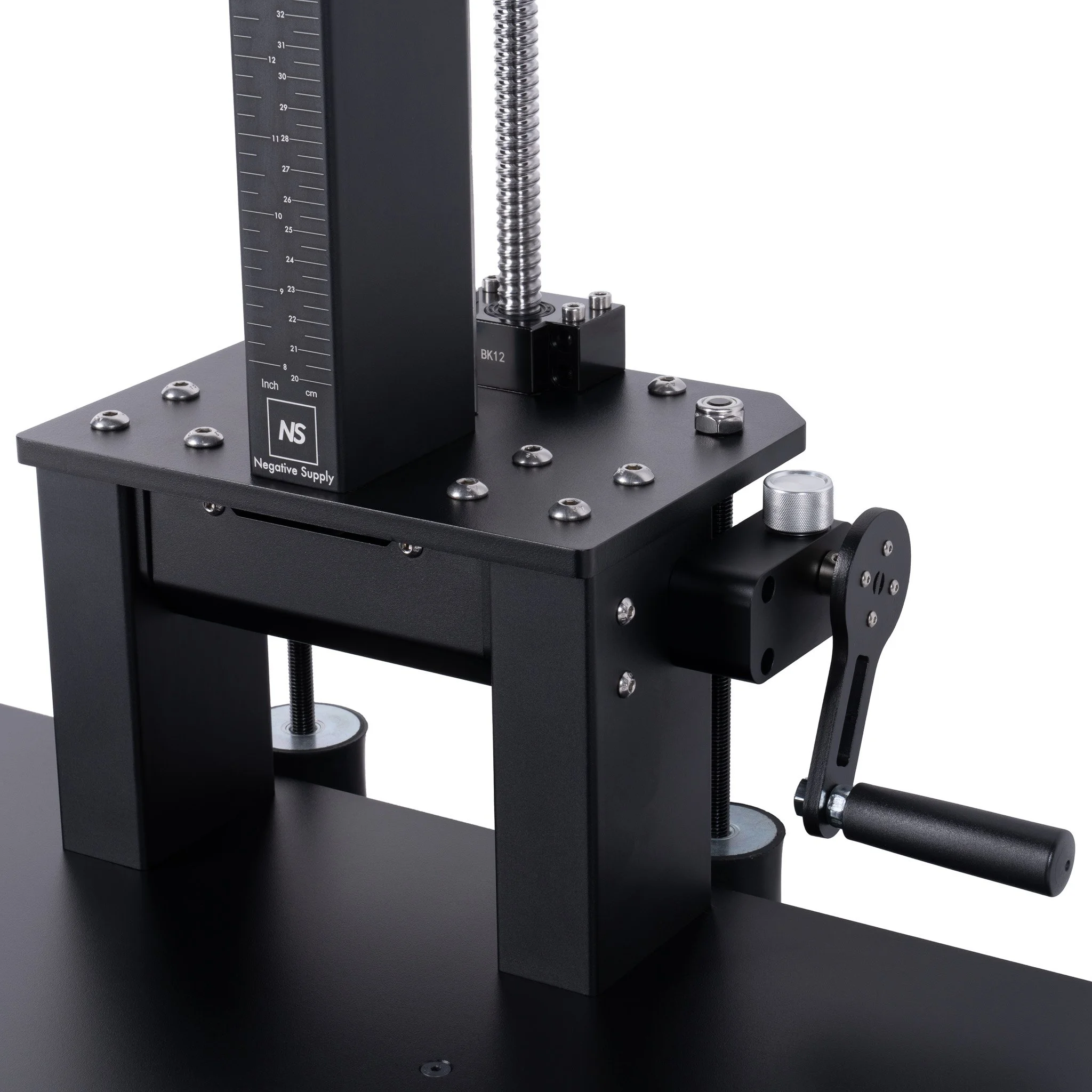

• Cushioned hand crank for ergonomic and precise adjustment of camera height

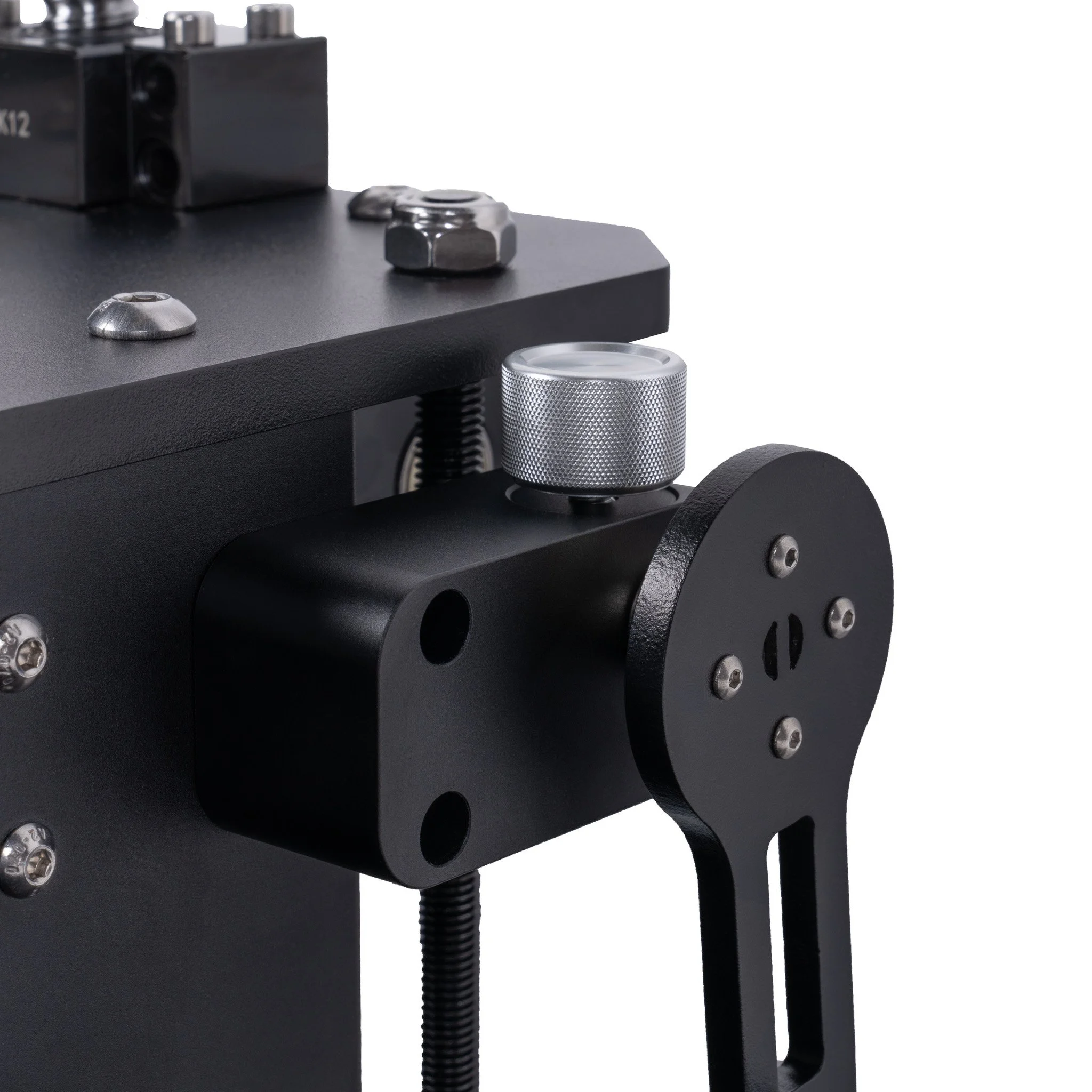

• CNC machined lock assembly to prevent hand crank from slipping when not in use

• Custom designed gearbox for precise adjustment of camera height

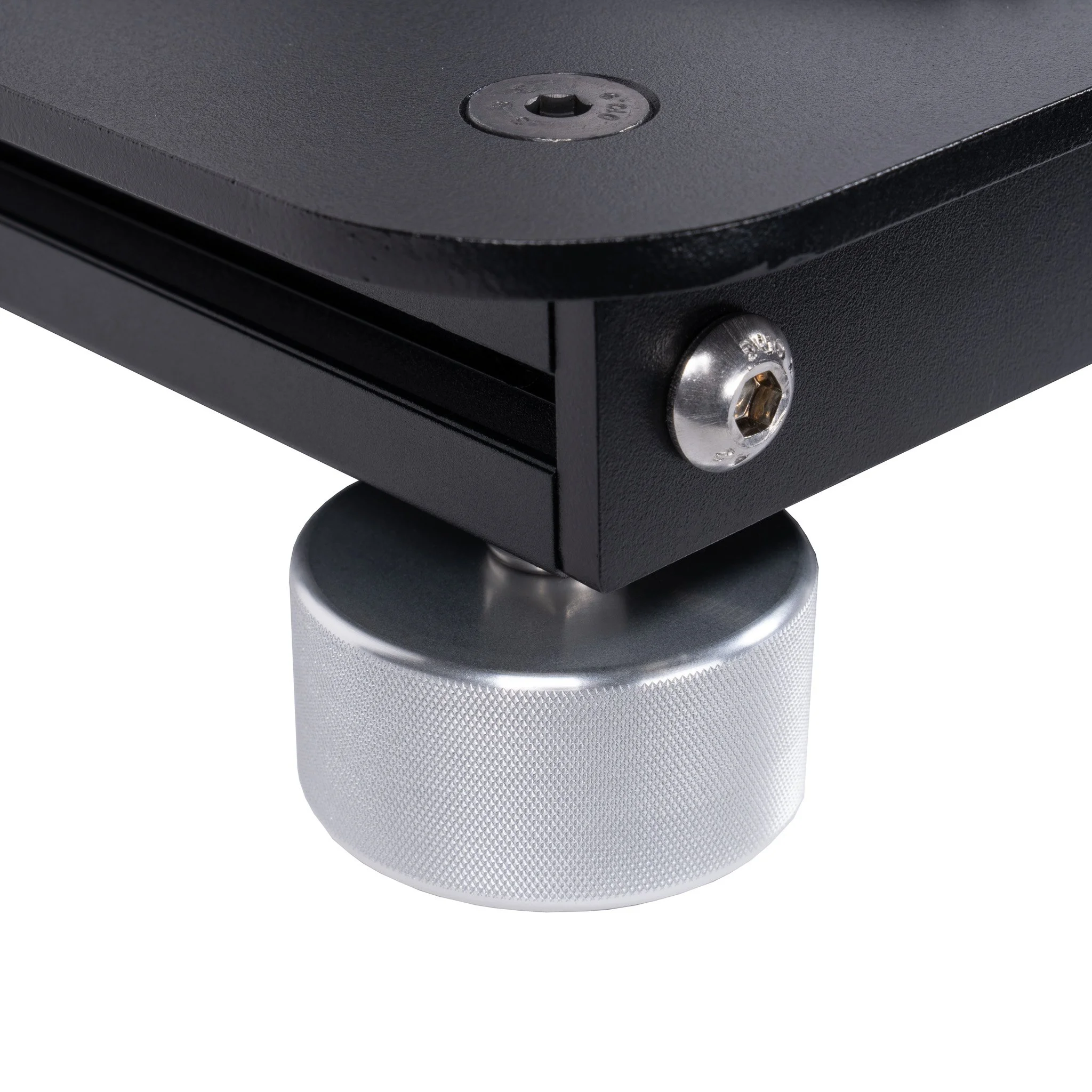

• Knurled, machined aluminum leveling feet that do not require tools to adjust

• Minimum Height: 10.5in (267mm) (From copy stand baseboard to camera mount at lowest setting)

• Maximum height: 48.75in (1.25 meters) (From copy stand baseboard to camera mount at highest setting)

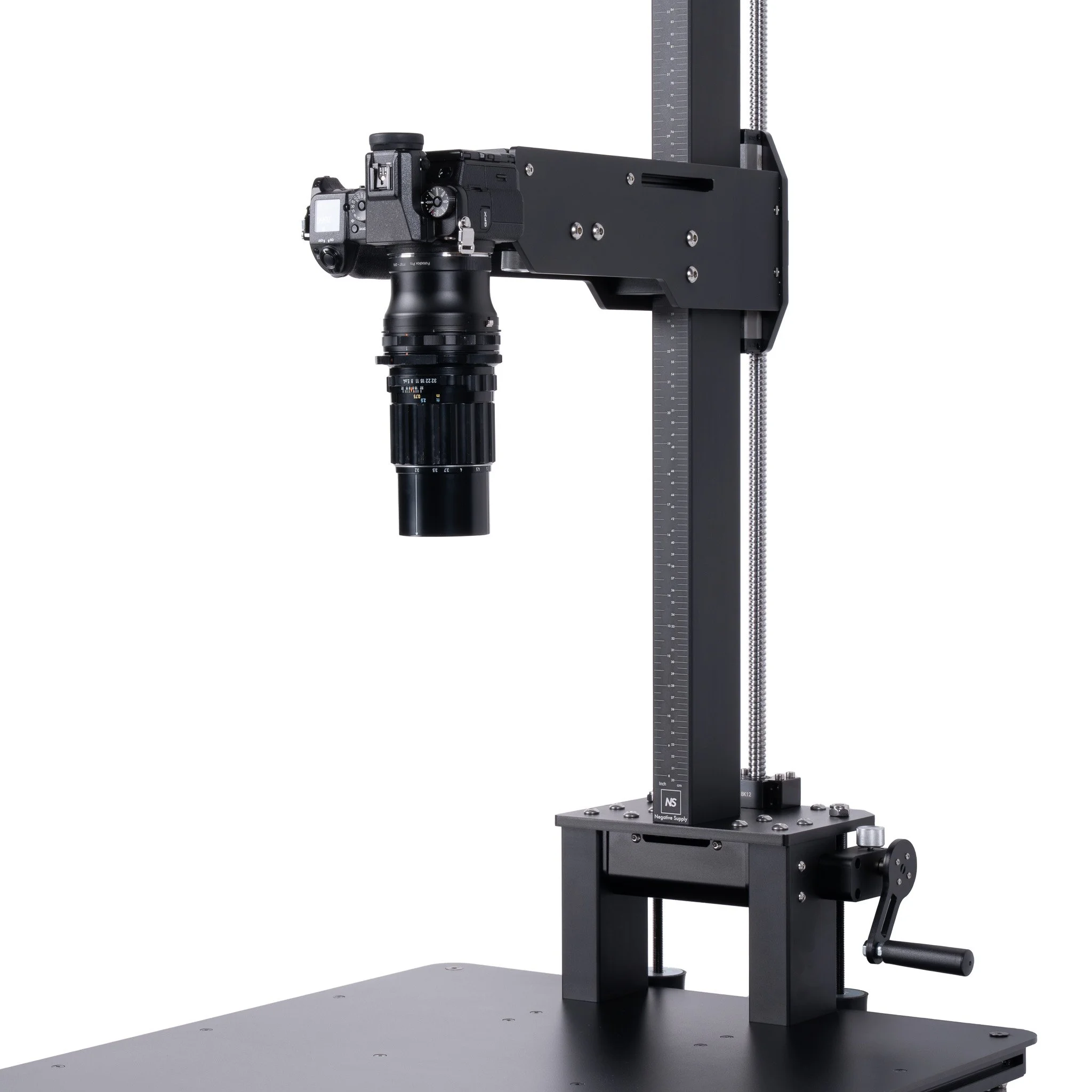

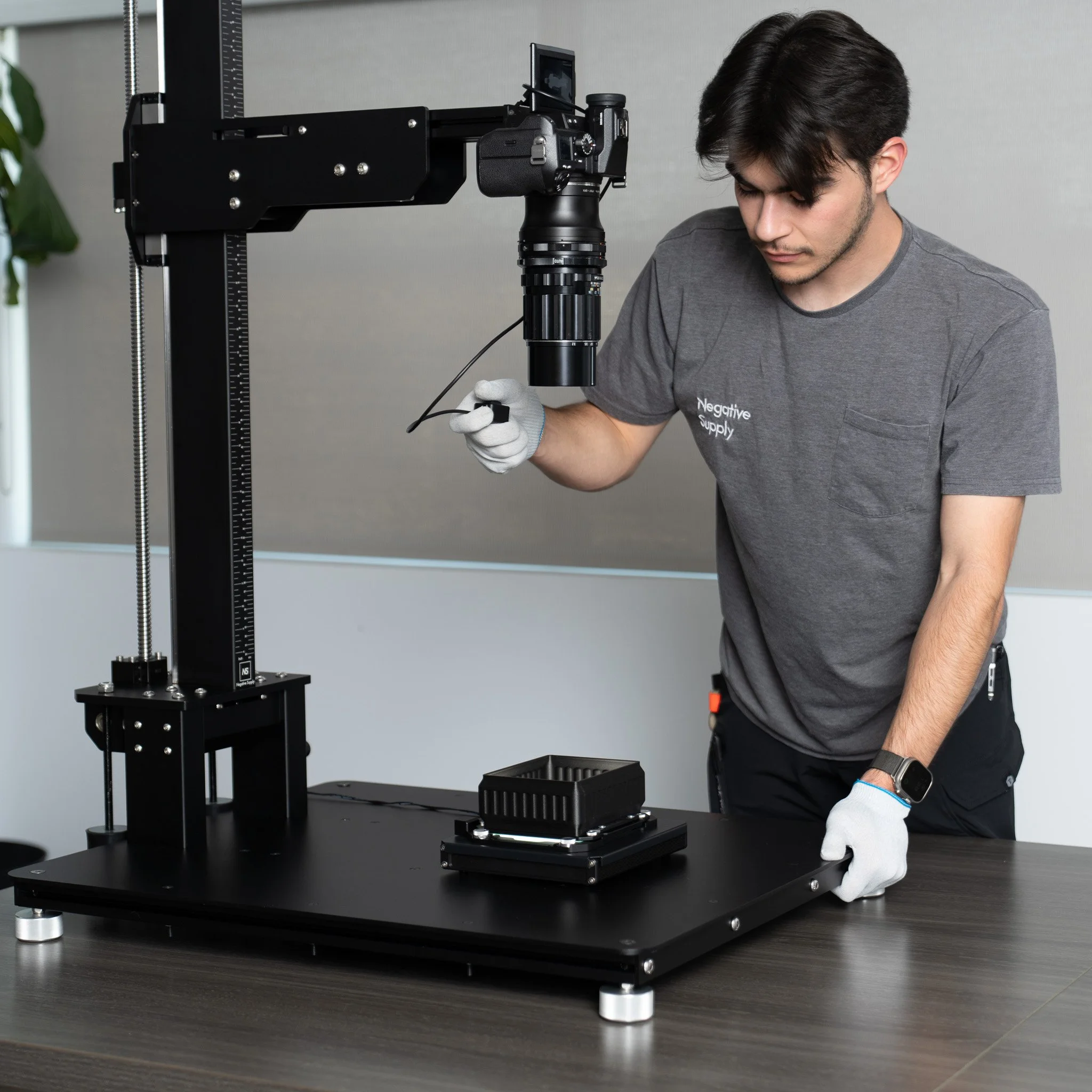

• Telescopic head that allows camera to reach further into scanning area

• Aerospace grade aluminum for stiffness and weight savings where it matters, featuring a 6061 series column for absolute rigidity

• 1008 Mild Steel baseboard for rigidity and sturdiness, as well as being a magnetic surface for reflective media applications

• Biggest. Base. Ever. 745.4mm x 609.601mm (29.35in x 24in) *EFFECTIVE is 24x25.7 inches for scanning.

• CNC machined aluminum and steel parts throughout - all parts are metal and custom designed by our team

• Hand assembled in California by our team

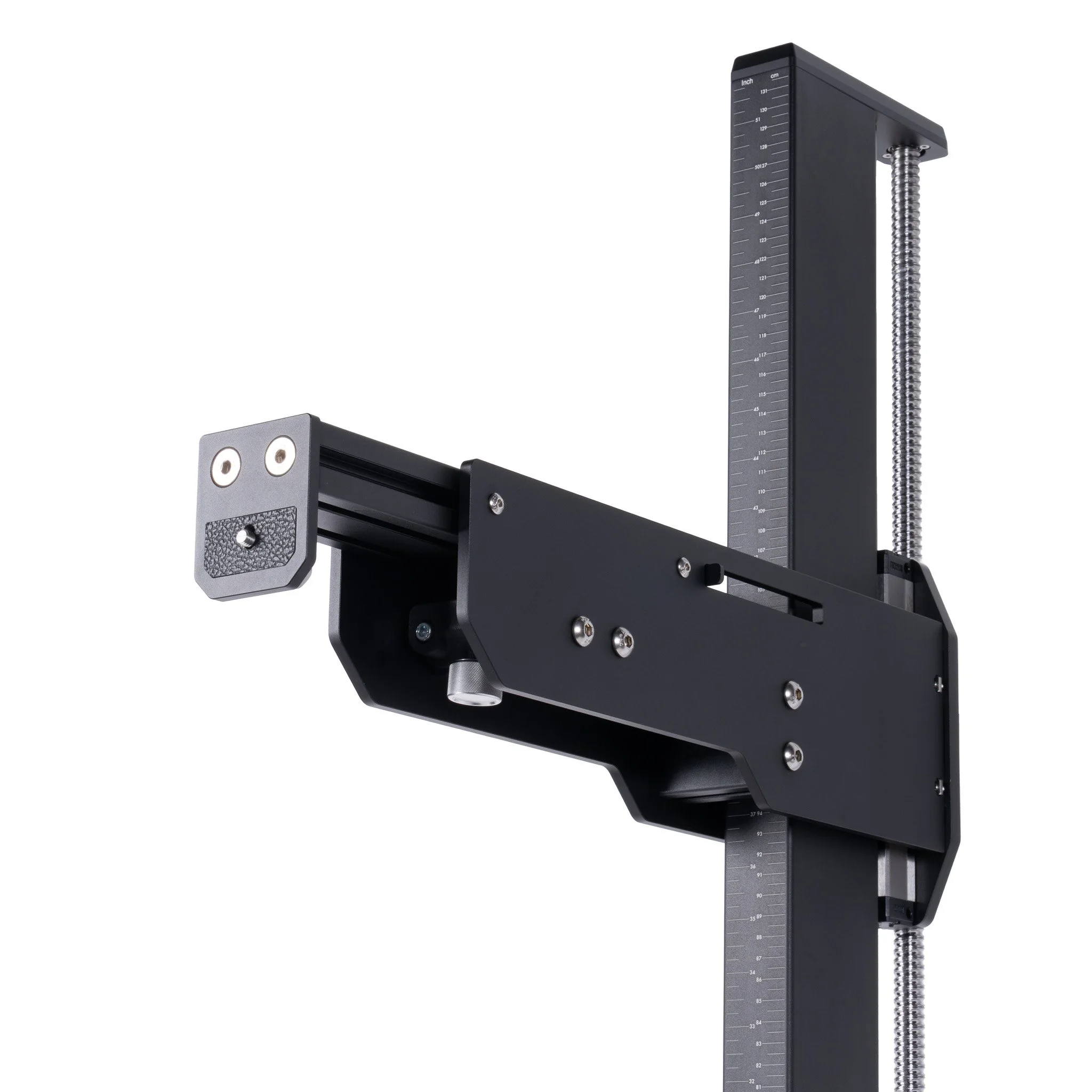

• Front-facing, laser engraved scale (inches and centimeters) on the riser column allows for quick adjustment for different formats and applications

• Black anodized and powder coated hardware to match our design ethos and Negative Supply finish standards, while also ensuring no unwanted reflections or glare

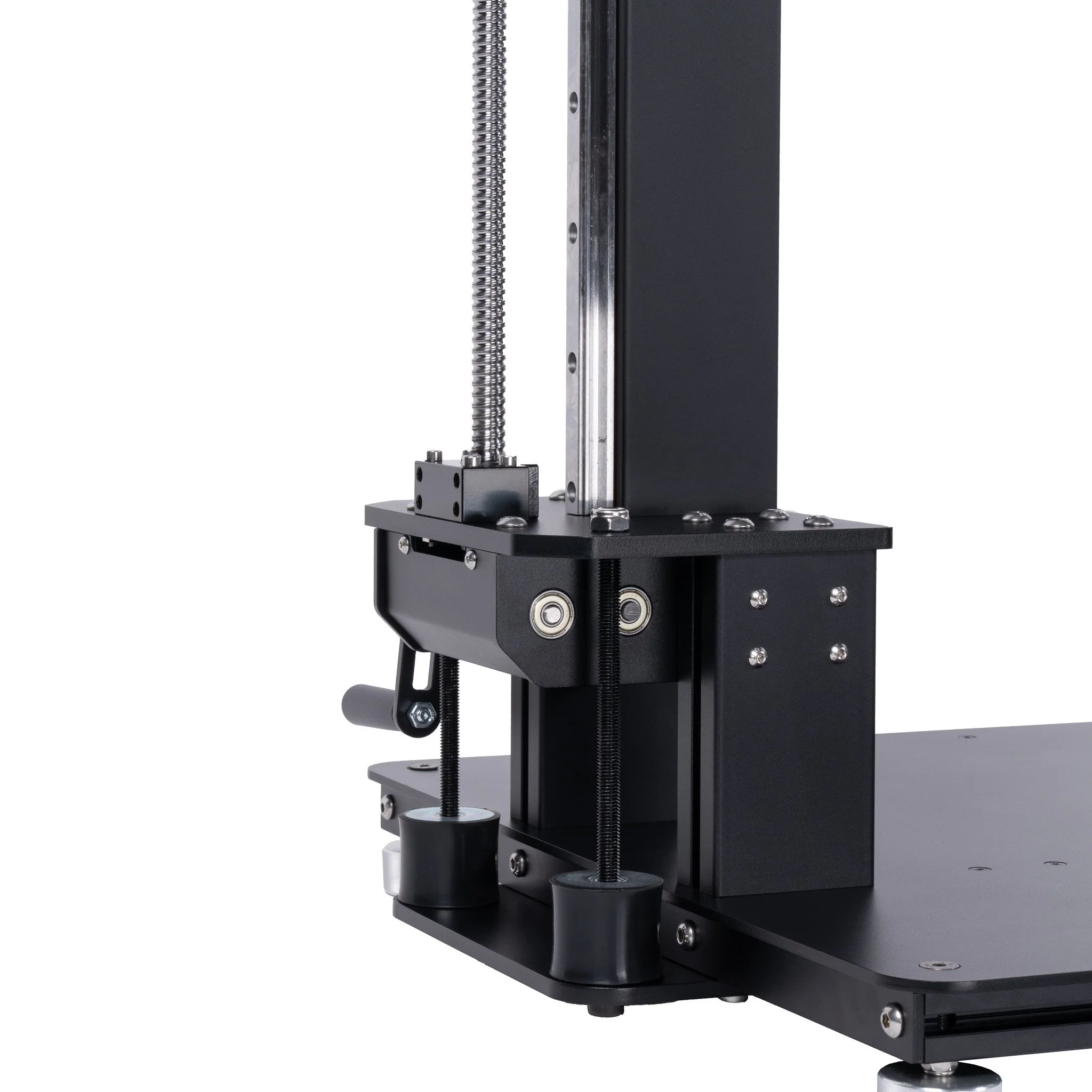

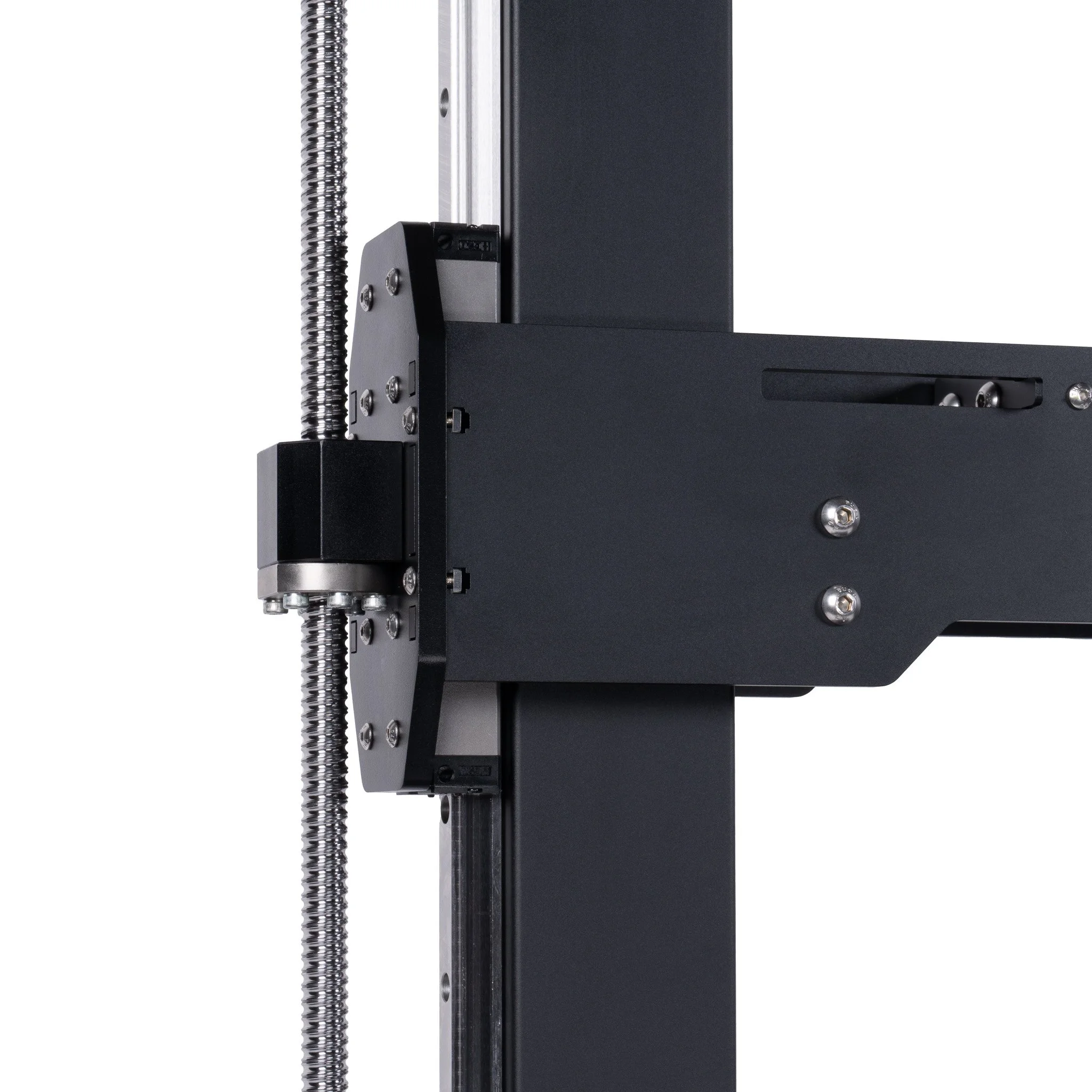

• Fully redesigned head and column assembly utilizes a precision industrial grade ball rod at the back of the stand, promoting rigidity and impressive load bearing ability

• Supports all digital cameras up to medium format systems and lenses with ease

• Solid steel base with dampening, large enough to hold any Negative Supply system

• Scan up to 8x10 film with a 105mm full frame lens

• Scan up to 20x25 inch transparent or reflective media

• Scan 35mm, 120 and 4x5 film with nearly any camera and lens combination

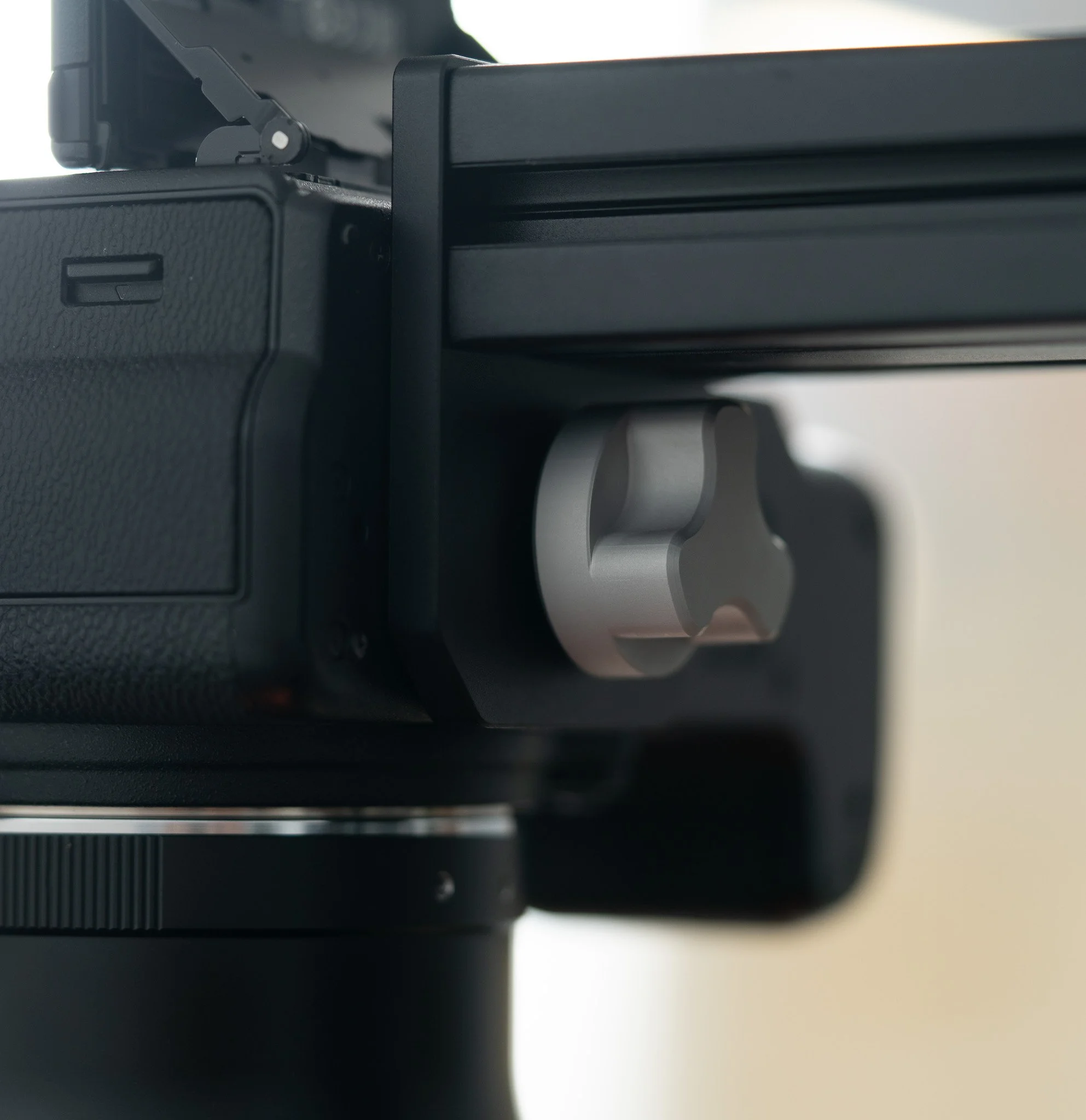

• More secure camera mounting point that ensures absolutely zero “drift” when the camera is mounted (even with medium format systems), featuring a precision machined aluminum tri lobe design with a stainless steel mounting stud

• Pro Riser Studio safely supports all DSLRs, mirrorless cameras and digital medium format systems.

Includes:

• Riser baseboard

• 48.75” calibrated column

• CNC machined mounting knob with camera mounting stud (1/4-20)

• CNC machined aluminum leveling feet

• 6mm and 8mm T handles for assembly

• Instructions

PRODUCT DIMENSIONS (L x W x H):
29.35in x 24in x 55in (745.49mm x 609.6mm x 1397mm)
Product Weight - 105lbs (47.62 kg)
Shipping Weight - 120lbs (54.43 kg)

Shipping Box dimensions: 60x24x24in and requires team lift. Ships via Freight. If other items are added to the cart please select “Standard Shipping” at checkout. If a lower value is selected you will be sent an invoice for the remainder of the shipping amount.

This product is available for a limited pre-order. We anticipate that orders will be fulfilled within 45 days. This product carries our 2-year warranty & is considered special order. As such, this is non-refundable or cancellable once your order has been placed.
