Pro Film Carrier 4x5 (for up to 4x5 Inch Film Scanning)
Pro Film Carrier 4x5 (for up to 4x5 Inch Film Scanning)
Our Pro Film Carrier 4x5 is an all-new product featuring a wide array of unique features, new functionality and a massive improvement in workflow.
We are proud to introduce our all-new Pro Film Carrier 4x5. This film carrier system is the culmination of years of feedback and R&D and features a 100% precision machined assembly and numerous custom parts. Our unique clamshell ANR glass design allows two hinged pieces of glass to interlay on each other, and coupled with our proprietary floating hinge design ensures absolute film flatness.
The Pro Film Carrier 4×5 builds on the modularity of our system by not only featuring hinged design for easier and faster 4×5 film scanning but also supporting optional Pro Film Carrier 4x5 masks for single cut film sizes of numerous formats that can also be used for strips. The addition of this full complement of masks makes our Pro Film Carrier 4×5 the most universal and essential carrier we’ve ever offered. Now, you can scan up to 6×12 and 116/616 frames with a single capture with absolute light masking.
If you’re using either our 4×5 Light Source Basic MK2 or 4×5 Light Source Pro MK2 then you will also need our required Pro Film Carrier 4×5 Light Source Adapter.
Also available with:
US Based Retailers
Freestyle Photo
B&H Photo
Our Pro Film Carrier 4x5 is a massive leap in large format and single frame film scanning. It’s unique hinge design with interchangeable masks for single cut negatives of all varieties from 35mm single frame and beyond is revolutionary. This film carrier was designed with zero compromises. It uses a CNC machined frame, custom locking knobs and control knobs, ANR glass and flush mounted magnets to ensure professional quality that meets the most exacting standards.
Key Features:
Proprietary floating hinge design with user adjustable tensioners to accommodate any film thickness for absolute flatness
Independent leveling knobs on all four corners ensure the ability to level your film plane to the camera sensor plane
CNC machined chassis, knobs, retention clips, and more featuring 6061 series aluminum
Expert anodized black finish for durability and longterm usage
Scans up to 4x5 inch sheet film with the full rebate
Modular design with replaceable sheets of ANR glass

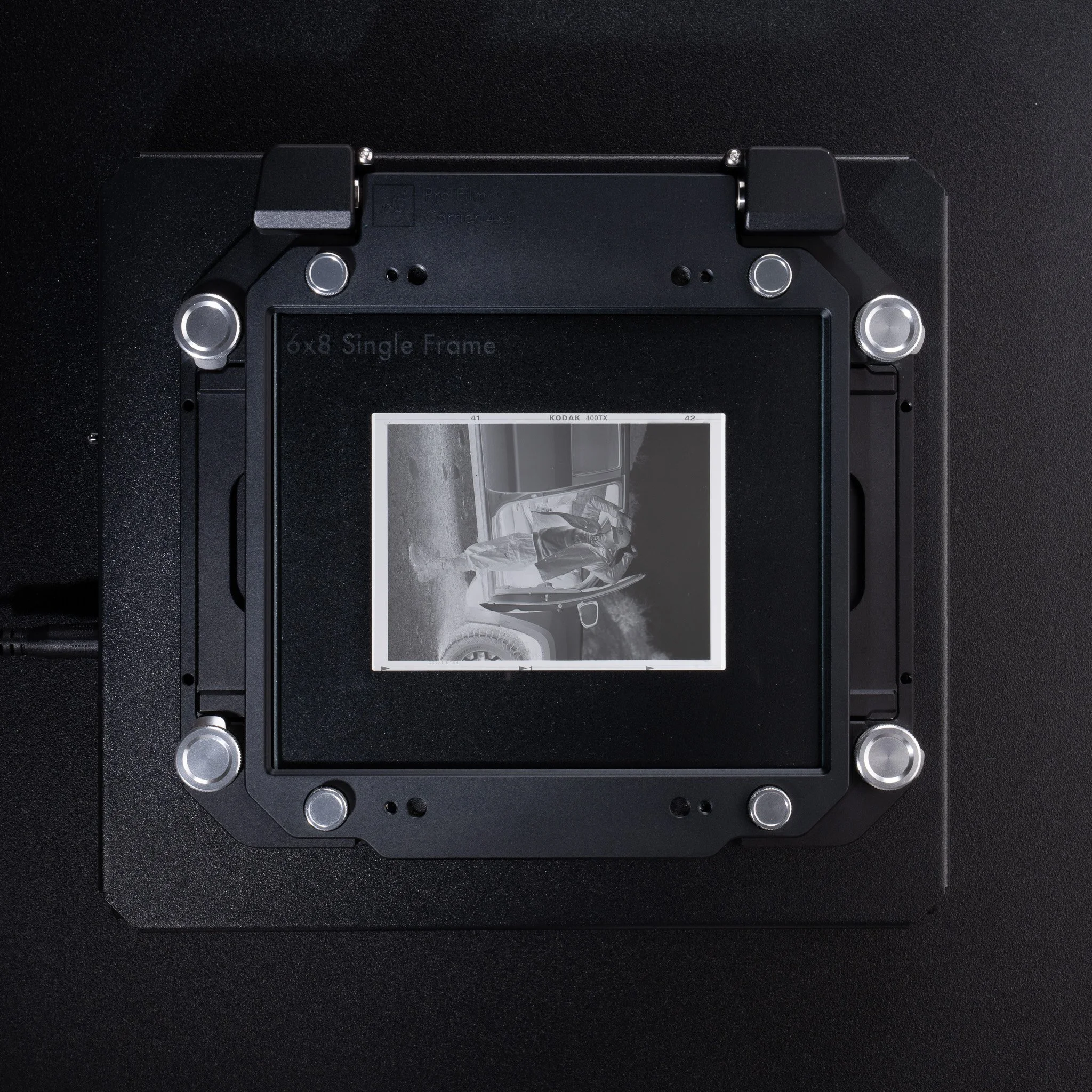

Optional masks for 35mm formats, 120/220/620 formats, 116/616, and more as single cut negatives and strips
Flush mount glass design perfectly nests film without worry of crimping or damaging negatives
Fits directly on our 4x5 Light Source Basic MK2 or 4x5 Light Source Pro with required adapter plate
Optional 4x5 Film Scanning Hood magnetically attaches to the carrier, masking extraneous light and ensuring optimal contrast
Includes:
Assembled CNC aluminum chassis
Top and Bottom ANR sheets
Please note, additional masks and adapter plate are sold separately.
